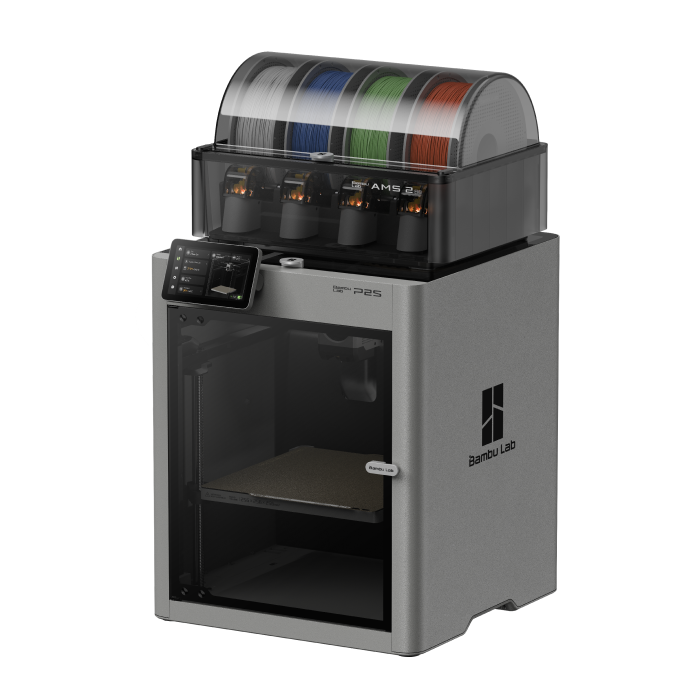

Bambu Lab P2S Combo

Description

General

• Printing Technology: Fused Deposition Modeling (FDM/FFF)

• Build Volume: 256 × 256 × 256 mm

• Machine Dimensions: 392 × 406 × 478 mm

• Net Weight: ~14.9 kg (P2S) + AMS weight ~5 kg

• Frame / Body: Plastic & steel chassis with plastic & glass panels

Toolhead & Extrusion

• Extruder Type: High‑precision PMSM motor with hardened steel gears

• Nozzle (Default): 0.4 mm hardened steel

• Optional Nozzles: 0.2 mm / 0.6 mm / 0.8 mm

• Filament Diameter: 1.75 mm

• Built-in Filament Cutter: Yes

• Max Nozzle Temperature: 300 °C

Build Plate / Bed

• Included Plate: Textured PEI spring steel

• Other Plates Supported: Smooth PEI, Cool Plate SuperTack

• Max Heated Bed Temp: 110 °C

Display & Electronics

• Display: 5-inch touchscreen (854 × 480)

• Processor: Quad-core ARM A7 + dual-core Cortex-M4 + Cortex-M7 + NPU for AI

• Connectivity: Dual-band Wi-Fi, USB port

Sensors & Monitoring

• Camera: 1080p HD for live view and timelapse

• AI Print Error Detection: Yes (detects spaghetti, clogs, start errors)

• Other Sensors: Filament run-out, door sensor, filament tangle & odometry, power-loss recovery

Automatic Material System (AMS 2 Pro)

• Multi-Filament Support: Up to 4 spools of filament

• Filament Drying: Built-in heater and humidity control

• Automatic Filament Switching: Yes, during print for multi-color or multi-material prints

• Filament Detection: Run-out, tangle, and jam detection

• Integration: Fully integrated with P2S for seamless printing

Printing Performance

• Max Print Speed: ~500–600 mm/s (motion)

• Max Acceleration: 20,000 mm/s²

• Max Flow Rate: 40 mm³/s

• Auto Flow Calibration: Yes

Materials Supported

• PLA, PETG, ABS, ASA, TPU, PC, PA (Nylon), PVA

• Composite filaments (CF, GF blends) supported with correct setup

Chamber & Air Management

• Fully enclosed chamber for temperature stability

• Adaptive airflow system for cooling and chamber control

• Activated carbon air filter for odor/VOC reduction

Power

• Voltage: 100–120 VAC / 200–240 VAC, 50/60 Hz

• Power Consumption: ~1000–1200 W (P2S) + AMS power

Quick Summary

• Build Volume: 256 × 256 × 256 mm

• Multi-Filament Support: Up to 4 spools (AMS 2 Pro)

• Nozzle Temp: Up to 300 °C

• Bed Temp: Up to 110 °C

• Display: 5-inch touchscreen

• Filament: 1.75 mm, wide material support

• Sensors: AI error detection, camera, multiple safety sensors

• Printing Speed: High-speed ~500–600 mm/s
