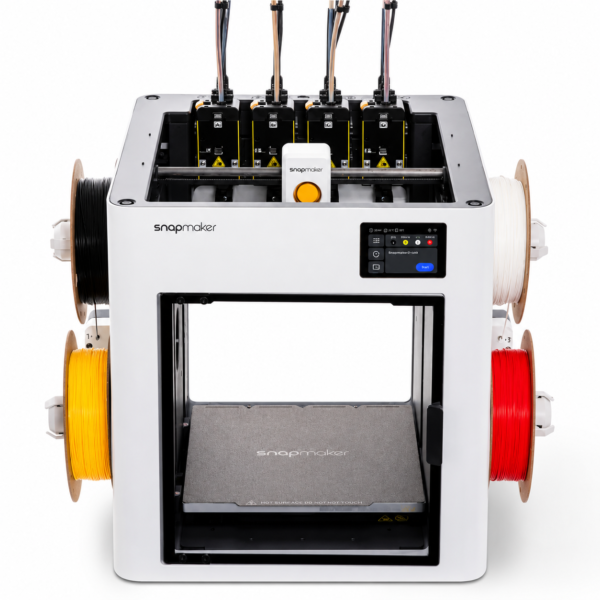

Snapmaker U1 3d Printer

Description

Build & Size

• Build Volume: 270 × 270 × 270 mm
• Machine Size: 584 × 499 × 730 mm
• Weight: 18.2 kg
• Frame Type: CoreXY Structure

Printing Performance

• Max Printing Speed: 500 mm/s
• Max Acceleration: 20,000 mm/s²
• Multi-toolhead System: 4 Independent Toolheads
• Tool Change Time: Around 5 seconds
• Toolhead Alignment Accuracy: ≤0.04 mm

Extruder & Nozzle

• Nozzle Size: 0.4 mm
• Max Nozzle Temperature: 300°C
• Filament Diameter: 1.75 mm
• Max Flow Rate: 32 mm³/s

Heated Bed

• Bed Temperature: Up to 100°C
• Build Surface: Flexible PEI Spring Steel Sheet
• Auto Bed Leveling: Yes

Supported Filaments

• PLA
• PETG
• TPU
• PVA
• ABS
• ASA
• Nylon (PA)
• PC
• Carbon Fiber Materials
• Glass Fiber Materials

Smart Features

• Automatic Bed Leveling
• Vibration Compensation
• Pressure Advance Calibration
• RFID Filament Detection
• Auto Filament Loading
• Filament Runout Sensor
• Power Loss Recovery
• Camera Monitoring

Connectivity

• Wi-Fi
• USB Drive
• 3.5-inch Touchscreen
• Built-in Camera

Power

• Power Consumption:
  • 1150W (220–240V)
  • 400W (110V)

Main Advantage

The biggest highlight of the Snapmaker U1 is the 4 independent toolhead system, which gives:

• Faster multi-color printing
• Less filament waste
• Better multi-material support
• Faster tool changes than AMS systems
